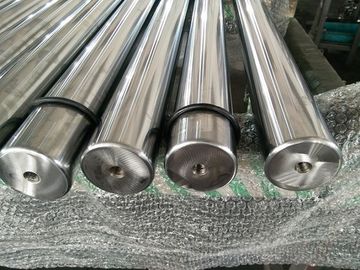

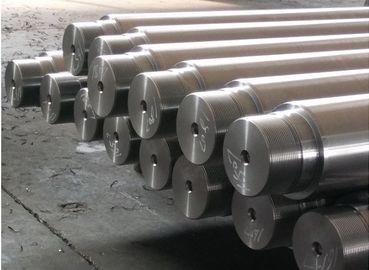

Tempered Precision Steel Shaft , Induction Hardened Rod CK45

Tempered Precision Steel Shaft , Induction Hardened Rod CK45

  • Tempered Precision Steel Shaft , Induction Hardened Rod CK45
  • Tempered Precision Steel Shaft , Induction Hardened Rod CK45
Tempered Precision Steel Shaft , Induction Hardened Rod CK45
Product Details:
Place of Origin: China
Brand Name: HY
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 30tons a day
Contact Now
Detailed Product Description
Product: Precision Steel Shaft Length: 1000mm - 8000mm
Diameter: 6mm - 1000mm Diameter: 6mm - 1000mm
Diameter Tolerance: ISO F7 Straightness: Not More Than 0.2 MM/M
Ovality: Half Of The Tolerance ISO F7
High Light:

metal shafts

,

precision ground shaft

Tempered Precision Steel Shaft , Induction Hardened Rod CK45





Detailed Product Description


1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Tensile strength: Not less than 610 N/MM2

3. Yield strength: Not less than 355 N/MM2

4. Complete manufactured equipment

5. Application: Mining machinery industry, textile / printing industry and so on



Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

   ≤0.2MM/M

9. SURFACE HARDNESS

   850-1150HV (vickers 100g)

10.COHESION

   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

   in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

14. PACKING

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required
