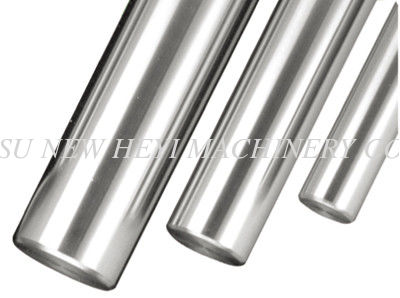

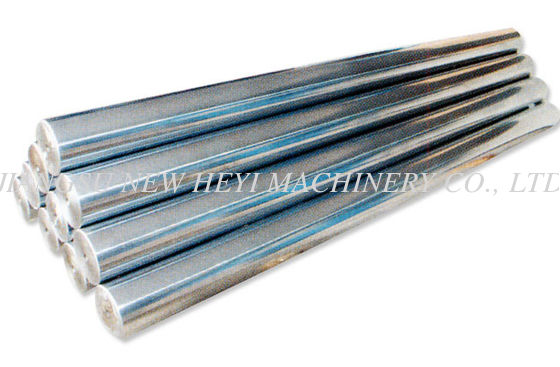

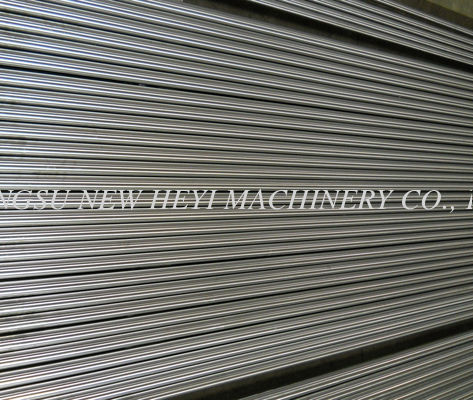

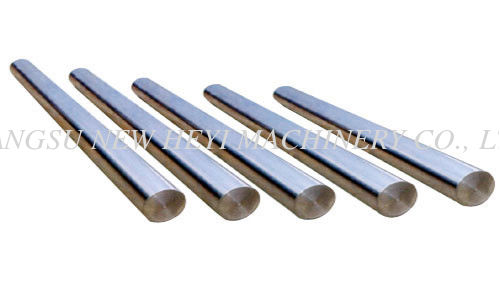

42CrMo Cold Drawn Steel Pipe Bar 6mm - 1000mm With High Hardness For Hydraulic Cylinder
Key Attributes
Brand Name:
HY
Place of Origin:
China
Certification:
ISO9001:2008
Minimum Order Quantity:
5 tons
Price:
Negotiation
Supply Ability:
30tons a day
Delivery Time:
30days
Payment Terms:
CIF,FOB or other
Standard Packaging:
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Product Summary
42CrMo Cold Drawn Steel Pipe Bar 6mm - 1000mm High Hardness Detailed Product Description 1. Material:42CrMo 2. Advanced inspection apparutus 3. Ground and chrome plated 4. IS09001:2008 5. Application: Mining machinery industry, textile / printing industry and so on Detailed Description 1.CHEMICAL COMPOSITION Material C% Mn% Si% S% P% V% Cr% Ck45 0.42-0.50 0.50-0.80 0.04 0.035 0.035 ST52 0.22 1.6 0.55 0.035 0.04 20MnV6 0.16-0.22 1.30-1.70 0.10-0.50 0.035 0.035 0.10-0.20
Product Custom Attributes
Highlight
42CrMo Cold Drawn hydraulic cylinder tubing
,High Hardness hollow stainless steel rod
,42crmo cold drawn piston rods
Product:
Hydraulic Chrome Piston Rod
Material:
Stainless Steel, Carbon Steel
Length:
1000mm - 8000mm
Diameter:
6mm - 1000mm
Surface Hardness:
850-1150 HV (vickers 100g)
Straightness:
Not More Than 0.2 MM/M
Product Description
42CrMo Cold Drawn Steel Pipe Bar 6mm - 1000mm High Hardness
Detailed Product Description
1. Material:42CrMo
2. Advanced inspection apparutus
3. Ground and chrome plated
4. IS09001:2008
5. Application: Mining machinery industry, textile / printing industry and so on
Detailed Description
1.CHEMICAL COMPOSITION
| Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
| Ck45 | 0.42-0.50 | 0.50-0.80 | 0.04 | 0.035 | 0.035 | ||
| ST52 | 0.22 | 1.6 | 0.55 | 0.035 | 0.04 | ||
| 20MnV6 | 0.16-0.22 | 1.30-1.70 | 0.10-0.50 | 0.035 | 0.035 | 0.10-0.20 | |
| 42CrMo4 | 0.38-0.45 | 0.60-0.90 | 0.15-0.40 | 0.03 | 0.03 | 0.90-1.20 | |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | 0.80-1.10 |
2.MECHANCIAL PROPERTIES
| Material | T.S N/MM2 | Y.S N/MM2 | E%(MIN) | CHARPY | CONDITION |
| CK45 | 610 | 355 | 15 | >41J | NORMALIZE |
| CK45 | 800 | 630 | 20 | >41J | Q + T |
| ST52 | 500 | 355 | 22 | NORMALIZE | |
| 20MnV6 | 750 | 590 | 12 | >40J | NORMALIZE |
| 42CrMo4 | 980 | 850 | 14 | >47J | Q + T |
| 40Cr | 1000 | 800 | 10 | Q + T |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
