Place of Origin: | China |
Brand Name: | HY |
Certification: | ISO9001:2008 |
Minimum Order Quantity: | 1tons |
---|---|
Price: | Negotiation |
Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
Delivery Time: | 30days |
Payment Terms: | CIF,FOB or other |
Supply Ability: | 30tons a day |
Name: | Hydraulic Piston Rod | Diameter: | 6mm - 1000mm |
---|---|---|---|
Diameter Tolerance: | ISO F7 | Surface Treatment: | Hard Chrome Plated |
Hard Chrome Thickness: | 20 - 30 Micron | Straightness: | Not More Than 0.2 MM/M |
High Light: | stainless steel rod,hydraulic cylinder tubing,40Cr Hydraulic Piston Rods |

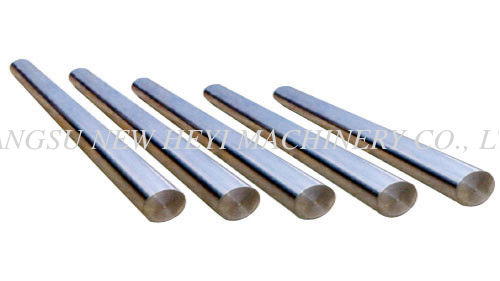

20MnV6 , 40Cr Hydraulic Piston Rods Induction Hardened Steel Rod
Detailed Product Description
1. Material: 42CrMo4, 40Cr, CK45,ST52, 20MnV6
2. Advanced inspection apparatus
3. Tensile strength: Not less than 610 N/MM2
4. Yield strength: Not less than 355 N/MM2
5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened
Detailed Description
1.CHEMICAL COMPOSITION
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
|
|
ST52 |
0.22 |
1.6 |
0.55 |
0.035 |
0.04 |
|
|
20MnV6 |
0.16-0.22 |
1.30-1.70 |
0.10-0.50 |
0.035 |
0.035 |
0.10-0.20 |
|
42CrMo4 |
0.38-0.45 |
0.60-0.90 |
0.15-0.40 |
0.03 |
0.03 |
|
0.90-1.20 |
40Cr |
0.37-0.45 |
0.50-0.80 |
0.17-0.37 |
|
|
|
0.80-1.10 |
2.MECHANCIAL PROPERTIES
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
ST52 |
500 |
355 |
22 |
|
NORMALIZE |
20MnV6 |
750 |
590 |
12 |
>40J |
NORMALIZE |
42CrMo4 |
980 |
850 |
14 |
>47J |
Q + T |
40Cr |
1000 |
800 |
10 |
|
Q + T |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
