Place of Origin: | China |
Brand Name: | HY |
Certification: | ISO9001:2008 |
Minimum Order Quantity: | 5 tons |
---|---|
Price: | Negotiation |
Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
Delivery Time: | 30days |
Payment Terms: | L/C, T/T |
Supply Ability: | 30tons a day |
Product Name: | Precision Steel Shaft | Raw Material: | Steel |
---|---|---|---|
Diameter: | 6mm - 1000mm | Length: | 1000mm - 8000mm |
Surface Condition: | Chrome Plating | Chrome Thickness: | 20-30 Micron |
High Light: | precision shafts,metal shafts |

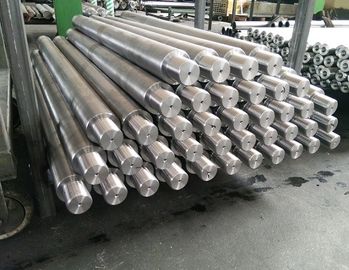

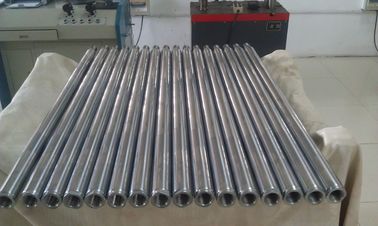

ST52 Seamless Steel Hard Chrome Plated Piston Rod Professional
Detailed Product Description
1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr
2. Ground and chrome plated
3. ISO9001:2008
4. Advanced inspection apparatus
5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened
Detailed Description
1.CHEMICAL COMPOSITION
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
|
|
ST52 |
0.22 |
1.6 |
0.55 |
0.035 |
0.04 |
|
|
20MnV6 |
0.16-0.22 |
1.30-1.70 |
0.10-0.50 |
0.035 |
0.035 |
0.10-0.20 |
|
42CrMo4 |
0.38-0.45 |
0.60-0.90 |
0.15-0.40 |
0.03 |
0.03 |
|
0.90-1.20 |
40Cr |
0.37-0.45 |
0.50-0.80 |
0.17-0.37 |
|
|
|
0.80-1.10 |
2.MECHANCIAL PROPERTIES
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
ST52 |
500 |
355 |
22 |
|
NORMALIZE |
20MnV6 |
750 |
590 |
12 |
>40J |
NORMALIZE |
42CrMo4 |
980 |
850 |
14 |
>47J |
Q + T |
40Cr |
1000 |
800 |
10 |
|
Q + T |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
From 2017, we established an intelligent workshop with all automatic machined. There are five lines only for producing exported products. The new workshop is executing 6S strictly. The production capacity will be 1500 tons per month.
We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.The new chrome plating line is the first one in China and will be the only one in the next five years!
