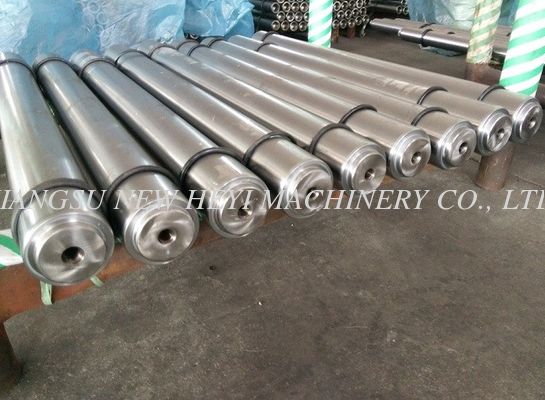

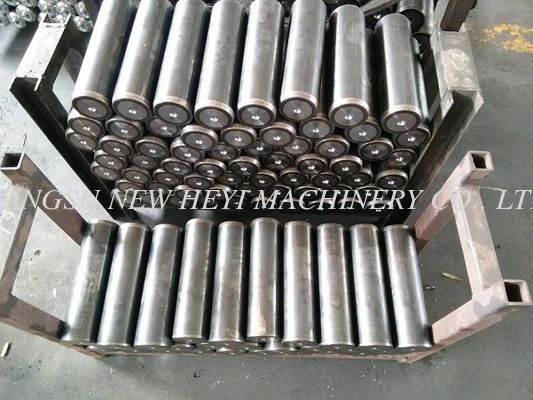

Machinery Industry Hydraulic Cylinder Rod With Induction Hardened
Key Attributes
Brand Name:
HY
Place of Origin:
China
Certification:
ISO9001:2008
Minimum Order Quantity:
5 tons
Price:
Negotiation
Supply Ability:
30tons a day
Delivery Time:
30days
Payment Terms:
L/C, T/T
Standard Packaging:
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Product Summary
Machinery Industry Hydraulic Cylinder Rod With Induction Hardened Detailed Product Description 1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr 2. ISO9001:2008 3. Tensile strength: Not less than 610 N/MM2 4. Yield strength: Not less than 355 N/MM2 5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened Detailed Description 1.CHEMICAL COMPOSITION Material C% Mn% Si% S% P% V% Cr% Ck45 0.42-0.50 0.50-0.80 0.04 0.035 0.035 ST52 0.22 1.6 0.55 0
Product Custom Attributes
Highlight
Machinery Industry Hydraulic Cylinder Rod
,Induction Hardened chrome plated rod
Product Name:
Hydraulic Cylinder Rod
Material:
Stainless Steel, Carbon Steel
Diameter:
6mm - 1000mm
Length:
1000mm - 8000mm
Straightness:
Not More Than 0.2 MM/M
Surface Hardness:
850-1150 HV (vickers 100g)
Product Description
Machinery Industry Hydraulic Cylinder Rod With Induction Hardened
Detailed Product Description
1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr
2. ISO9001:2008
3. Tensile strength: Not less than 610 N/MM2
4. Yield strength: Not less than 355 N/MM2
5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened
Detailed Description
1.CHEMICAL COMPOSITION
|
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
|
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
|
|
|
ST52 |
0.22 |
1.6 |
0.55 |
0.035 |
0.04 |
|
|
|
20MnV6 |
0.16-0.22 |
1.30-1.70 |
0.10-0.50 |
0.035 |
0.035 |
0.10-0.20 |
|
|
42CrMo4 |
0.38-0.45 |
0.60-0.90 |
0.15-0.40 |
0.03 |
0.03 |
|
0.90-1.20 |
|
40Cr |
0.37-0.45 |
0.50-0.80 |
0.17-0.37 |
|
|
|
0.80-1.10 |
2.MECHANCIAL PROPERTIES
|
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
|
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
|
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
|
ST52 |
500 |
355 |
22 |
|
NORMALIZE |
|
20MnV6 |
750 |
590 |
12 |
>40J |
NORMALIZE |
|
42CrMo4 |
980 |
850 |
14 |
>47J |
Q + T |
|
40Cr |
1000 |
800 |
10 |
|
Q + T |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
