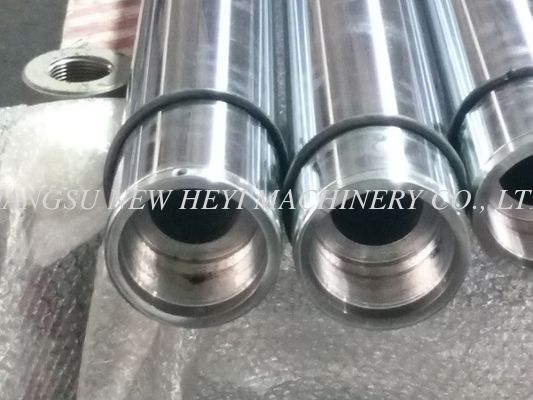

quality Cold Drawn Hollow Piston Rod For Pneumatics Cylinder Length 1m - 8m factory

Cold Drawn Hollow Piston Rod For Pneumatics Cylinder Length 1m - 8m

Key Attributes

Brand Name: HY

Place of Origin: China

Certification: IS09001:2008

Minimum Order Quantity: 5 tons

Price: Negotiation

Supply Ability: 30tons a day

Delivery Time: 30days

Standard Packaging: Anti rust oil to be applied on material and each rod to be packed in paper sleeve

Product Summary

Cold Drawn Hollow Piston Rod For Pneumatics Cylinder Length 1m - 8m Detailed Product Description1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr2. Tensile strength: Not less than 610 N/MM23. Yield strength: Not less than 355 N/MM24. Advanced inspection apparatus5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened Detailed Description1.CHEMICAL COMPOSITIONMaterialC%Mn%Si%S%P%V%Cr%Ck450.42-0.500.50-0.800.040.0350.035 ST520.221.60.550.0350

Product Custom Attributes

Highlight

Length 1m hollow steel tube

,

Pneumatics Cylinder stainless steel hollow bar

,

Chrome Cold Drawn Hollow Piston Rod

Product:

Chrome Hollow Piston Rod

Raw Material:

Steel

OD:

6mm - 1000mm

Length:

1000mm - 8000mm

Surface Roughness:

Ra0.2

External Diameter Accuracy:

F7

Product Description

Cold Drawn Hollow Piston Rod For Pneumatics Cylinder Length 1m - 8m

Detailed Product Description
1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr
2. Tensile strength: Not less than 610 N/MM2
3. Yield strength: Not less than 355 N/MM2
4. Advanced inspection apparatus
5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened

Detailed Description
1.CHEMICAL COMPOSITION

Material	C%	Mn%	Si%	S%	P%	V%	Cr%
Ck45	0.42-0.50	0.50-0.80	0.04	0.035	0.035
ST52	0.22	1.6	0.55	0.035	0.04
20MnV6	0.16-0.22	1.30-1.70	0.10-0.50	0.035	0.035	0.10-0.20
42CrMo4	0.38-0.45	0.60-0.90	0.15-0.40	0.03	0.03		0.90-1.20
40Cr	0.37-0.45	0.50-0.80	0.17-0.37				0.80-1.10

2.MECHANCIAL PROPERTIES

Material	T.S N/MM2	Y.S N/MM2	E%(MIN)	CHARPY	CONDITION
CK45	610	355	15	>41J	NORMALIZE
CK45	800	630	20	>41J	Q + T
ST52	500	355	22		NORMALIZE
20MnV6	750	590	12	>40J	NORMALIZE
42CrMo4	980	850	14	>47J	Q + T
40Cr	1000	800	10		Q + T

3. SUPPLY CONDITION
    Ground  and  chrome plated
4. CHROME THICKNESS
     20 to 30 micron
5. SURFACE ROUGHNESS
     Ra≤0.2 micron and  Rt≤2 micro
6. TOLERANCES ON DIA
    ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
   ≤0.2MM/M
9. SURFACE HARDNESS
   850-1150HV (vickers 100g)
10.COHESION
   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
   in water)
11 .POROSITY
     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
     Test in natural salt spray according to ASTM B 117-72hours
     Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
      Good
14. PACKING
     Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
     All certificate related with material heat treatment and plating is required
