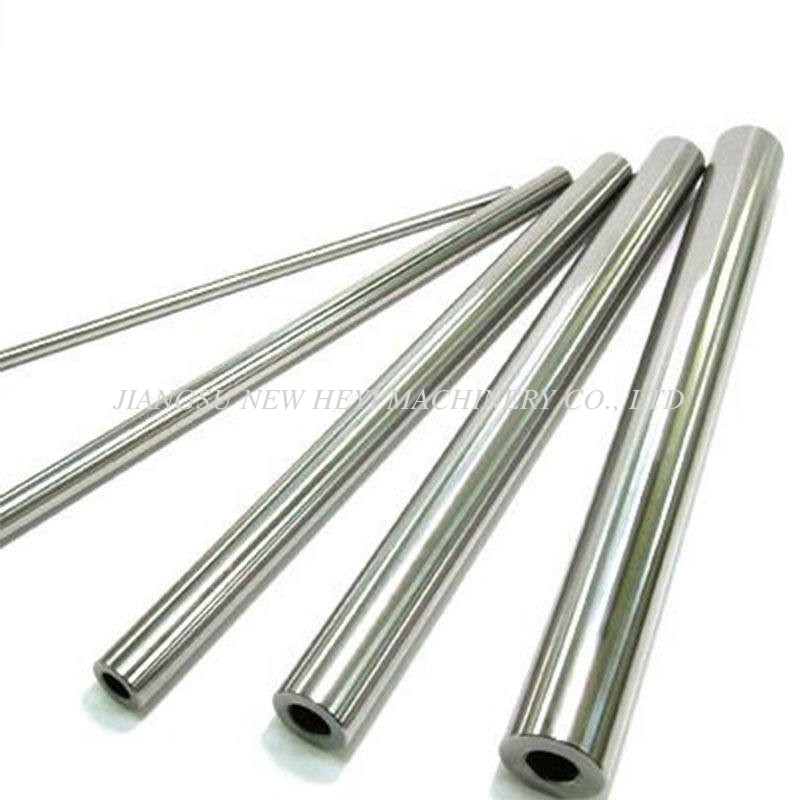

Hard Chrome Plated Hollow Piston Rod 6mm Stainless Steel For Shock Absorbers

Hard Chrome Plated Hollow Piston Rod 6mm Stainless Steel For Shock Absorbers

  • Hard Chrome Plated Hollow Piston Rod 6mm Stainless Steel For Shock Absorbers
Hard Chrome Plated Hollow Piston Rod 6mm Stainless Steel For Shock Absorbers
Product Details:
Place of Origin: China
Brand Name: HY
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: CIF,FOB or other
Supply Ability: 30tons a day
Contact Now
Detailed Product Description
Name: Hollow Chrome Piston Rod Raw Material: Stainless Steel, Carbon Steel
Surface Condition: Hard Chrome Plating Hard Chrome Thickness: 20 - 30 Micron
Straightness: Not More Than 0.2 MM/M Surface Hardness: 850-1150 HV (vickers 100g)
High Light:

Hard Chrome Plated Hollow Piston Rod

,

Stainless steel Hollow Piston Rod

,

6mm Hollow Piston Rod

High Quality Hard Chrome Plated Piston Rod, Hollow Piston Rod For Shock Absorbers



The piston rod is mainly used in hydraulic pneumatic, engineering machinery, automobile manufacture with the piston rod, guide pillar plastic machinery, packaging machinery, printing machinery, roller, textile machinery, transportation machinery with axis, and linear motion with the linear optical axis.



The piston rod is hard chromium plating on a steel substrate surface coated with a thick layer of chromium plating and its thickness is commonly 10 to 30 microns, using the characteristics of chromium improves parts’ performance, such as hardness, wear resistance, heat resistance and corrosion resistant.
The process features of hard chrome plated piston rod:
1) the cathode current efficiency is as high as 25% ~ 35%, and the deposition rate is very fast.
2) high hardness (900 ~ 1200HV), uniform and dense network cracks, and good abrasion resistance; Microcracks can be produced, and the number of microcracks can reach 800-2000 pieces/cm (according to the need), and improve the anti-corrosion ability.

3) good dispersion ability of the plating bath, uniform thickness of the coating, not easy to produce the phenomenon of rough blister tumor, and the appearance of chromium layer is bright and smooth;
4) the coating has strong bonding strength with the substrate, and the pretreatment is similar to the traditional technology, and
the operation is easier than the traditional process;
5) the content of trivalent chromium in the bath is allowed to be wide, and it usually does not need to discontinue electrolysis for trivalent chromium;
6) the plating solution contains no fluoride, no rare earth elements, and no corrosion of the workpiece without low power.


Detailed Product Description
1. Material: 42CrMo4, 40Cr, CK45,ST52,  20MnV6
2. Tensile strength: Not less than 610 N/MM2
3. Yield strength: Not less than 355 N/MM2
4. Length: 1000mm - 8000mm
5. Diameter: 6mm - 1000mm
6. Advanced inspection apparatus
7. Complete manufactured equipment

Detailed Description
1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10


2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T


3. SUPPLY CONDITION
    Ground  and  chrome plated
4. CHROME THICKNESS
     20 to 30 micron
5. SURFACE ROUGHNESS
     Ra≤0.2 micron and  Rt≤2 micro
6. TOLERANCES ON DIA
    ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
   ≤0.2MM/M
9. SURFACE HARDNESS
   850-1150HV (vickers 100g)
10.COHESION
   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
   in water)
11 .POROSITY
     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
     Test in natural salt spray according to ASTM B 117-72hours
     Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
      Good
14. PACKING
     Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
     All certificate related with material heat treatment and plating is required


Hard Chrome Plated Hollow Piston Rod 6mm Stainless Steel For Shock Absorbers 0
