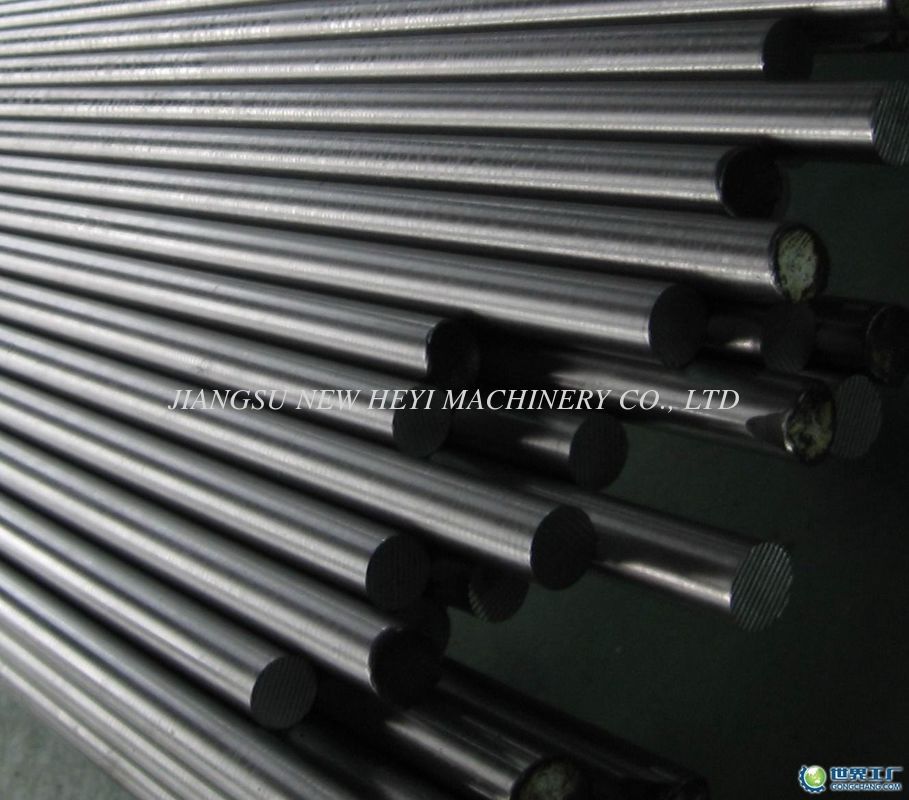

Hard Chrome Precision Plated Steel Shafts CK45 SAE 1045 4140 For Hydraulic Pistion Rod

Hard Chrome Precision Plated Steel Shafts CK45 SAE 1045 4140 For Hydraulic Pistion Rod

  • Hard Chrome Precision Plated Steel Shafts CK45 SAE 1045 4140 For Hydraulic Pistion Rod
Hard Chrome Precision Plated Steel Shafts CK45 SAE 1045 4140 For Hydraulic Pistion Rod
Product Details:
Place of Origin: China
Brand Name: HY
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 30tons a day
Contact Now
Detailed Product Description
Product Name: Hard Chrome Plated Shafts Material: CK45, SAE 1045, 4140
Diameter: 6mm - 1000mm Length: 1000mm - 8000mm
Straightness: Not More Than 0.2 MM/M Surface Hardness: 850-1150 HV (vickers 100g)
High Light:

Precision Hard Chrome Plated Shafts

,

CK45 Precision Plated Shafts

,

4140 Precision Plated Steel Shafts

Hard chrome plated shafts /chrome plated bar with material CK45, SAE 1045, 4140 for hydraulic pistion rod



Hard chrome plated shafts are known as Chrome plated rods or chrome plated bar also, they are usually used to manufacturing or repairing the hydraulic piston shafts. This product is widely used for most piston shaft applications in hydraulic and pneumatic cylinders.



Our hard chrome plated shafts are manufactured from round steel bar through high precision polishing, and chrome plated with a certain thickness, the thickness of chrome plated layer is usually min. 20 microns.





Detailed Product Description

Materials:

As the leading chrome plated bar supplier, our factory can produce chrome plated shafts in wide range of materials as carbon steel and stainless steels. The most popular steel grades of carbon steel chrome plated shafts are JIS S45C, SAE1045, AISI 1045 / 1050, DIN CK45.



Size range:

We can manufacture hard chrome plated shafts with size range from external diameter 6 mm to 800 mm.

We supply both metric size chrome plated shafts and imperial sizes chrome plated bar.



Packing:

Our chrome plated shafts usually is packed with plastic sleeves or paper tubes. Also we can provide packing method of wooden cases on customers’ requests.



Chrome plated thickness

The thickness of the chrome plated layer can be 10 microns to 30 microns. And the most popular requirements is that the chrome layer of the chrome plated shaft is min. 20 microns.



Applications

Chrome plated shafts are usually used together with honed tubes for manufacturing or repairing the hydraulic cylinders or pneumatic cylinders. Beside this, the chrome plated rods also are widely used as shafts of various machines, where high precision and high smooth surface is required.



As the high quality China honed tube & chrome plated bar manufacturer, our factory also produces honed tubes and chrome plated hollow bars,

our products are exported to customers in many countries abroad, and gained very good reputation in the field.





Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

   ≤0.2MM/M

9. SURFACE HARDNESS

   850-1150HV (vickers 100g)

10.COHESION

   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

   in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

14. PACKING

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required



From 2017, we established an intelligent workshop with all automatic machined. There are five lines only for producing exported products. The new workshop is executing 6S strictly. The production capacity will be 1500 tons per month.
