20MnV6 Round Chrome Plated Piston Rods , Chrome Hydraulic Cylinder Rod
Key Attributes
Brand Name:
HY
Place of Origin:
China
Certification:
ISO9001:2008
Minimum Order Quantity:
5 tons
Price:
Negotiation
Supply Ability:
30tons a day
Delivery Time:
30days
Payment Terms:
CIF,FOB or other
Standard Packaging:
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Product Summary
20MnV6 Round Chrome Plated Piston Rods , Chrome Hydraulic Cylinder Rod Detailed Product Description 1. Material: 42CrMo4, 40Cr, CK45,ST52, 20MnV6 2. ISO9001:2008 3. Advanced inspection apparatus 4. Complete manufactured equipment 5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened Detailed Description 1.CHEMICAL COMPOSITION Material C% Mn% Si% S% P% V% Cr% Ck45 0.42-0.50 0.50-0.80 0.04 0.035 0.035 ST52 0.22 1.6 0.55 0.035 0.04 20MnV6
Product Custom Attributes
Highlight
20MnV6 Round Chrome Plated Piston Rods
,Chrome hollow stainless steel rod
,20mnv6 chrome piston rod
Product Name:
Hydraulic Piston Rods
Yield Strength:
Not Less Than 355 N/MM2
Standard Length:
1000mm - 8000mm
Surface Roughness:
Ra≤0.2micron And Rt≤2micro
Raw Material:
Steel
Tensile Strength:
Not Less Than 610 N/MM2
Product Description
20MnV6 Round Chrome Plated Piston Rods , Chrome Hydraulic Cylinder Rod
Detailed Product Description
1. Material: 42CrMo4, 40Cr, CK45,ST52, 20MnV6
2. ISO9001:2008
3. Advanced inspection apparatus
4. Complete manufactured equipment
5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened
Detailed Description
1.CHEMICAL COMPOSITION
|
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
|
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
|
|
|
ST52 |
0.22 |
1.6 |
0.55 |
0.035 |
0.04 |
|
|
|
20MnV6 |
0.16-0.22 |
1.30-1.70 |
0.10-0.50 |
0.035 |
0.035 |
0.10-0.20 |
|
|
42CrMo4 |
0.38-0.45 |
0.60-0.90 |
0.15-0.40 |
0.03 |
0.03 |
|
0.90-1.20 |
|
40Cr |
0.37-0.45 |
0.50-0.80 |
0.17-0.37 |
|
|
|
0.80-1.10 |
2.MECHANCIAL PROPERTIES
|
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
|
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
|
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
|
ST52 |
500 |
355 |
22 |
|
NORMALIZE |
|
20MnV6 |
750 |
590 |
12 |
>40J |
NORMALIZE |
|
42CrMo4 |
980 |
850 |
14 |
>47J |
Q + T |
|
40Cr |
1000 |
800 |
10 |
|
Q + T |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7. OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10. COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11. POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING

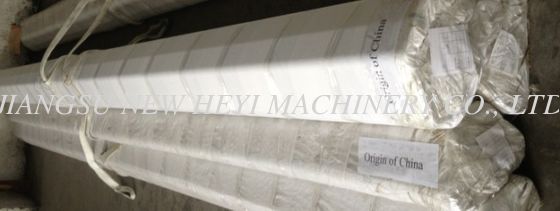

Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
