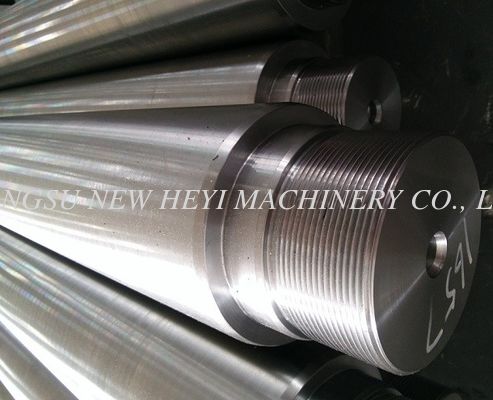

Ferrite And Pearlite Micro Alloy Steel Round Rod Hydraulic Piston Rod

Ferrite And Pearlite Micro Alloy Steel Round Rod Hydraulic Piston Rod

  • Ferrite And Pearlite Micro Alloy Steel Round Rod Hydraulic Piston Rod
  • Ferrite And Pearlite Micro Alloy Steel Round Rod Hydraulic Piston Rod
Ferrite And Pearlite Micro Alloy Steel Round Rod Hydraulic Piston Rod
Product Details:
Place of Origin: China
Brand Name: HY
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1 tons
Price: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 30tons a day
Contact Now
Detailed Product Description
Product: Hydraulic Piston Rod Material: Micro Alloy Steel
Surface Treatment: Chrome Plated Chrome Thickness: 20 - 30 Micron
Straightness: Not More Than 0.2MM/M Ovality: Half Of The Tolerance ISO F7
High Light:

chrome plated piston rod

,

microalloyed steels


 Ferrite And Pearlite Micro Alloy Steel Round Rod Hydraulic Piston Rod



Product Description
1. Energy conservation: Production no quenched and tempered process greatly saves the energy
    consumption.
2. Environments protection: Production no quenched and tempered process meets the requirements of
    environmental protection.
3. The mechanical property is correspond to quenched and tempered 42CrMo4, 40Cr and CK45 or over
    them and very uniform on the whole cross section.
4. Turning performance: Turning performance is commensurate to 42CrMo4, 40Cr and CK45 or be
    superior to them.
5. Hardness: Hardness is more uniform on the whole cross section than quenched and tempered
    42CrMo4, 40Cr and CK45.
6. Micro structure: Ferrite and pearlite with fine and uniform grain size.

Detailed Description

1. MATERIAL: HY4700, HY4520

2. CHEMICAL COMPOSITION(%)

Material

C%

Mn%

Si%

S%

P%

V%

Ni

Cr%

Mo

Cu

HY4700

0.38-0.45

1.20 ~1.60

0.30~0.50

≤0.035

≤0.020

0.05~0.15

≤0.25

0.10~0.20

≤0.15

0.25

HY4520

0.40 ~0.48

0.80 ~1.40

0.15 ~0.35

≤0.035

≤0.035

≤0.15

≤0.25

≤0.25

≤0.15

≤0.25



3. MECHANICAL PROPERTIES


Material

MECHANICAL PROPERTIES

Surface hardness(HBW)

 Rm(MPa)

Rel(MPa)

A%

Z%

KU2(J)



HY4700

Φ35 - Φ100

900 - 1100

≥650

≥16

≥35

≥39

270-340

>Φ100 - Φ140

850 - 950

≥600

≥16

≥35

≥39

270-340

HY4520

Φ40 - Φ100

750 - 900

≥520

≥19

≥40

≥39

230-290

>Φ100~Φ140

750 - 900

≥520

≥17

≥35

≥39

230-290



















4. SUPPLY CONDITION
    Ground  and  chrome plated
5. CHROME THICKNESS
     20 to 30 micron
6. SURFACE ROUGHNESS
     Ra≤0.2 micron and  Rt≤2 micron
7. TOLERANCES ON DIA
     ISO f7 on the diameter
8.OVALITY
    Half of the tolerance ISO f7
9 .SURFACE HARDNESS
     850-1150HV (vickers 100g)
10. STRAIGHTNESS
   ≤0.2MM/M
11. COHESION

     No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

    and cooling in water)
12. WELDABILITY
     Good
13 .POROSITY
      Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

14. CORROSION RESISTANCE
     Test in natural salt spray according to ASTM B 117-120hours
     Results evaluation according to ISO 4540 RATING 7-10

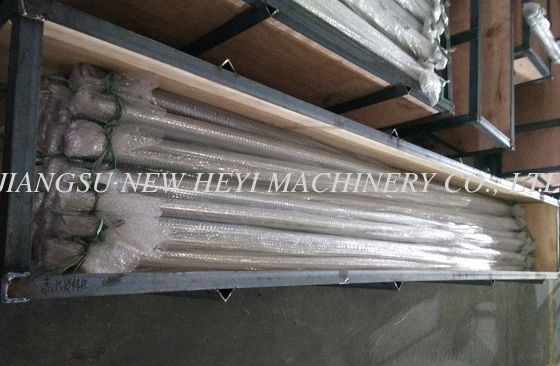

15. PACKING
     Anti rust oil to be applied on material and each rod to be packed in paper sleeve
16. CERTIFICATE
      All certificate related with material heat treatment and plating is required
