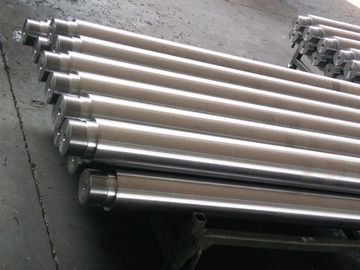

Hydraulic Cylinder Induction Hardened Bar With CK45 , Professional
Key Attributes
Brand Name:
HY
Place of Origin:
China
Certification:
ISO9001:2008
Minimum Order Quantity:
5 tons
Price:
Negotiation
Supply Ability:
30tons a day
Delivery Time:
30days
Payment Terms:
L/C, T/T
Standard Packaging:
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Product Summary
Hydraulic Cylinder Induction Hardened Bar with CK45 , Professional Detailed Product Description 1. Material: CK45 2. Diameter: 6mm - 1000mm 3. Length: 1000mm - 8000mm 4. Advanced inspection apparatus 5. Complete manufactured equipment 6. Case depth:1.5mm - 2.5mm Induction hardness: HRC50 - 60 Detailed Description 1.CHEMICAL COMPOSITION Material C% Mn% Si% S% P% V% Cr% Ck45 0.42-0.50 0.50-0.80 0.04 0.035 0.035 2.MECHANCIAL PROPERTIES Material T.S N/MM2 Y.S N/MM2 E%(MIN) CHARPY
Product Custom Attributes
Highlight
Hydraulic Cylinder Induction Hardened Bar
,CK45 induction hardened chrome bar
Name:
Induction Hardened Bar
Raw Material:
Stainless Steel, Carbon Steel
Tensile Strength:
Not Less Than 610 N/MM2
Yield Strength:
Not Less Than 355 N/MM2
Surface Condition:
Chrome Plating
Chrome Thickness:
25 +/- 5 Micron
Product Description
Hydraulic Cylinder Induction Hardened Bar with CK45 , Professional
Detailed Product Description
1. Material: CK45
2. Diameter: 6mm - 1000mm
3. Length: 1000mm - 8000mm
4. Advanced inspection apparatus
5. Complete manufactured equipment
6. Case depth:1.5mm - 2.5mm Induction hardness: HRC50 - 60
Detailed Description
1.CHEMICAL COMPOSITION
|
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
|
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
|
|
2.MECHANCIAL PROPERTIES
|
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
|
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
|
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
