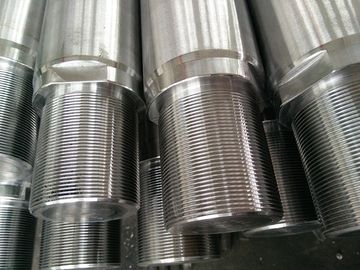

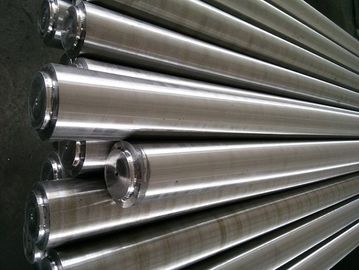

20MnV6 / ST52 Hard Chrome Plated Rod , Chrome Plated Pipe Professional

20MnV6 / ST52 Hard Chrome Plated Rod , Chrome Plated Pipe Professional

  • 20MnV6 / ST52 Hard Chrome Plated Rod , Chrome Plated Pipe Professional
  • 20MnV6 / ST52 Hard Chrome Plated Rod , Chrome Plated Pipe Professional
  • 20MnV6 / ST52 Hard Chrome Plated Rod , Chrome Plated Pipe Professional
20MnV6 / ST52 Hard Chrome Plated Rod , Chrome Plated Pipe Professional
Product Details:
Place of Origin: China
Brand Name: HY
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1 tons
Price: Negotiation
Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time: 30days
Payment Terms: CIF,FOB or other
Supply Ability: 30tons a day
Contact Now
Detailed Product Description
Product Name: Chrome Plated Rod Material: Steel
Surface Roughness: Ra≤0.2micron And Rt≤2micro Surface Hardness: 850-1150 HV (vickers 100g)
Surface Treatment: Hard Chrome Plated Chrome Thickness: 20-30 Micron
High Light:

chrome plated tubing

,

chrome plated steel tube

20MnV6 / ST52 Hard Chrome Plated Rod , Chrome Plated Pipe Professional





Detailed Product Description



1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Tensile strength: Not less than 610 N/MM2

3. Yield strength: Not less than 355 N/MM2

4. Ground and chrome plated

5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened





Detailed Description



1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

   ≤0.2MM/M

9. SURFACE HARDNESS

   850-1150HV (vickers 100g)

10.COHESION

   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

   in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

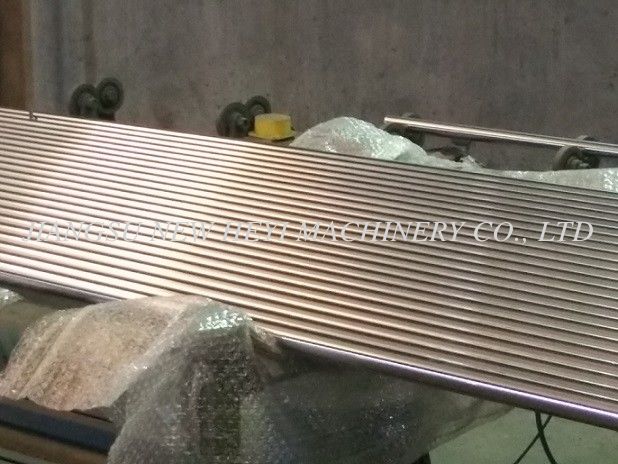

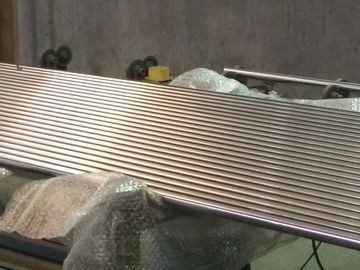

14. PACKING

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required



Jiangsu New Heyi Machinery Co., Ltd is the professional supplier for Hydraulic piston rod, is located in Wuxi, near Shanghai Port, supplying high quality chrome piston rod. Within 16 years experience in this area, We have high quality standard for production with our factory, vast stock for product and high efficiency shipping service.
