Chrome Piston Rod
Created with Pixso. Hydraulic Cylinder Chrome Piston Rod CK45 , ST52 , 42CrMo4 , 40Cr

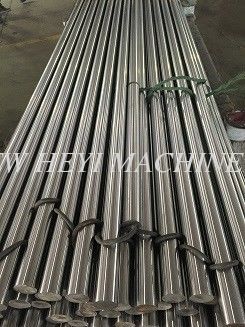

Hydraulic Cylinder Chrome Piston Rod CK45 , ST52 , 42CrMo4 , 40Cr

Brand Name: HY
MOQ: 1 tons
Price: Negotiation
Delivery Time: 30days
Payment Terms: CIF,FOB or other
Detail Information
Place of Origin:
China
Certification:
ISO9001:2008
Name:
Hydraulic Piston Rod
Surface Treatment:
Chrome Plating
Chrome Thickness:
20-30micron
Diameter:
6-1000mm
Length:
1000-8000mm
Surface Hardness:
850-1150HV
Packaging Details:
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Supply Ability:
30tons a day
Highlight:

Hydraulic Cylinder Chrome Piston Rod CK45

,

42CrMo4 hydraulic cylinder piston rod

,

ST52 chrome plated piston rod

Product Description

Hydraulic Cylinder Chrome Piston Rod CK45 , ST52 , 42CrMo4 , 40Cr





Detailed Product Description



1.Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr
2.Piston Rod Manufacturer
3.Top Quality, Good Service
4.ISO9001:2008

5.Diameter: 6mm - 1000mm, Length: 1000mm - 8000mm





Detailed Description



1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

   ≤0.2MM/M

9. SURFACE HARDNESS

   850-1150HV (vickers 100g)

10.COHESION

   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

   in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

14. PACKING

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required





We have complete manufactured equipment covering all processes. Bought the first continuous chromium plating line of China from Europe in 2015.



Hydraulic Cylinder Chrome Piston Rod CK45 , ST52 , 42CrMo4 , 40Cr 0



Equipments Show

Hydraulic Cylinder Chrome Piston Rod CK45 , ST52 , 42CrMo4 , 40Cr 1



Hydraulic Cylinder Chrome Piston Rod CK45 , ST52 , 42CrMo4 , 40Cr 2

Package Show



Hydraulic Cylinder Chrome Piston Rod CK45 , ST52 , 42CrMo4 , 40Cr 3





FAQ:



1. Q: What is your supply capacity?

    A: 30 tons every day.



2. Q: What is your delivery time?

    A: About 30 - 50 days according to your quantity.
