Ciągniona na zimno, precyzyjnie bezszwowa stalowa, szlifowana rura do cylindra hydraulicznego
Kluczowe atrybuty
Nazwa marki:
HY
Miejsce pochodzenia:
CHINY
Certyfikacja:
ISO9001:2008
Minimalna ilość zamówienia:
5 TON
Cena £:
negotiable
Zdolność do zaopatrzenia:
30 ton dziennie
Czas dostawy:
30dni
Warunki płatności:
L/C, T/T
Standard Packaging:
Olej antykorozyjny nakładany na materiał i każdy pręt pakowany w papierowy rękaw
Podsumowanie produktu
Cold Drawn Precision Seamless Steel Honed Tube For Hydraulic Cylinder Precision Steel Mechanical Honed Tube, Cold Drawn Seamless Tubes mechanical tube Detailed Product Description Cold drawn seamless tubes for mechanical and automotive components have the precise tolerance as per design purpose,especially for the small outside diameter and heavy wall tube which is beyond the limit of the welded tube size range . By cold drawing, the mechanical properties get increased.
Atrybuty niestandardowe produktu
Podkreślić
Rury wyostrzone na zimno z cylindru hydraulicznego
,Precyzyjna
Nazwa:
Szlifowana tuba
Materiał:
stali
Specyfikacje:

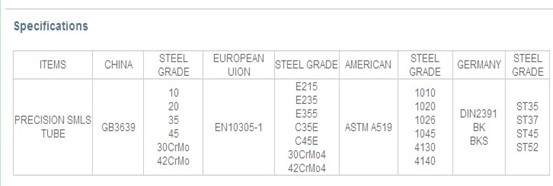

GB/T, DIN2391, EN10305-1
Warunki dostawy:
BKS
Długość:
5 m - 5,8 m
Węglowodany:
Ra 0,2 - 0,4 µm
Opis produktu
Ciągniona na zimno, precyzyjnie bezszwowa stalowa, szlifowana rura do cylindra hydraulicznego Precyzyjna stalowa, szlifowana, mechaniczna rura, rury ciągnione na zimno
rura mechaniczna
Szczegółowy opis produktu
Rury bez szwu ciągnione na zimno dla elementów mechanicznych i samochodowych mają dokładną tolerancję
zgodnie z przeznaczeniem, zwłaszcza dla małej średnicy zewnętrznej i ciężkiej rury ściennej, która jest poza nią
granica zakresu wielkości spawanych rur. Poprzez ciągnienie na zimno zwiększa się właściwości mechaniczne.
Produkty pokrewne
Hydraulic Cylinder Honed Tube , Mechanical Tubing Corrosion Resistant
Hydraulic Cylinder Honed Tube , Mechanical Tubing Corrosion Resistant Detailed Product Description Cold drawn seamless tubes for mechanical and automotive components have the precise tolerance as per design purpose, especially for the small outside diameter and heavy wall tube which is beyond the limit of the welded tube size range. By cold drawing, the mechanical properties get increased. Specifications Comparison table Items China Steel Grade European Uion Steel Grade
Stainless Steel Honed Hydraulic Cylinder Tubing 5.0m - 5.8m
Stainless Steel Honed Hydraulic Cylinder Tubing 5.0m - 5.8m Detailed Product Description 1. Specification GB/T, DIN2391, EN10305-1 2. Delivery Condition Stress Relieving Annealed a ( +SR, BKS) As per the request, + N (NBK) or + C ( BK) is available. 3. Outer Diameter < 40 mm +/-0.2mm From 40 to 100 mm +/-0.3mm >100mm +/-0.5mm 4. Wall Thickness 100mm +/-7.5% 5. Straightness 0.5/1000mm 6. Inside Honed Dia ISO H8 7. Rourghness Ra 0.2~0.4um 8. Length 5.0-5.8m 9. Fix length
20 micron - 30 micron Piston Honed Tube , Telescopic Cylinder Tube
20 micron - 30 micron Piston Honed Tube , Telescopic Cylinder Tube Detailed Product Description Telescopic Cylinder Tube and Piston Tube Our precision seamless tubes are suitable for the manufacture of pistons, telescopic cylinder. We can supply hard chrome plating for the telescopic cylinder tube as well, and the technical delivery conditions refer to the next page. A comparison of tubular piston rods versus solid piston rods of the same diameter based on identical
SSID / DOM Tubing pneumatyczny cylindryczny, honed Hydraulic Tubing
SSID / DOM Tube Pneumatic Cylinder Honed Hydraulic Cylinder Tubing SSID/DOM TUBE Detailed Product Description With the aid of a special drawing technique, the cold drawn welded tube with a inside smooth and compressed surface can directly used for the hydraulic and pneumatic cylinder application ( ready-to-use). The hoing or burnishing is not required. Compared to the seamless tube, the advantage of the SSID reduce the wall thickness deviation and the material cost.
Ciągnione na zimno rury cylindryczne ze stali nierdzewnej o wysokiej wytrzymałości mechanicznej
Cold Drawn Stainless Steel Honed Cylinder Tubing High Mechanical hydraulic cylinder tube Detailed Product Description Based on the optimized cold drawn process and reliable raw material source, we significantly reduce the stock margin for the honed tubes and increase dimensional accuracy of inside and outside diameters. By cold drawing, it improves mechanical properties which can provide a wall thickness reductions of up to 30%, and leading to significant component weight
SSID / DOM Stal ciągniona na zimno spawane do cylindrów pneumatycznych
SSID / DOM Cold Drawn Welded Tube Steel For Pneumatic Cylinders SSID/DOM TUBE Detailed Product Description With the aid of a special drawing technique, the cold drawn welded tube with a inside smooth and compressed surface can directly used for the hydraulic and pneumatic cylinder application ( ready-to-use). The hoing or burnishing is not required. Compared to the seamless tube, the advantage of the SSID reduce the wall thickness deviation and the material cost. Specificatio
Ciągniona na zimno rurka cylindra hydraulicznego, bezszwowa rura ze stali nierdzewnej
Cold Drawn Hydraulic Cylinder Tube , Seamless Stainless Steel Tube hydraulic cylinder tube Detailed Product Description Based on the optimized cold drawn process and reliable raw material source, we significantly reduce the stock margin for the honed tubes and increase dimensional accuracy of inside and outside diameters. By cold drawing, it improves mechanical properties which can provide a wall thickness reductions of up to 30%, and leading to significant component weight
