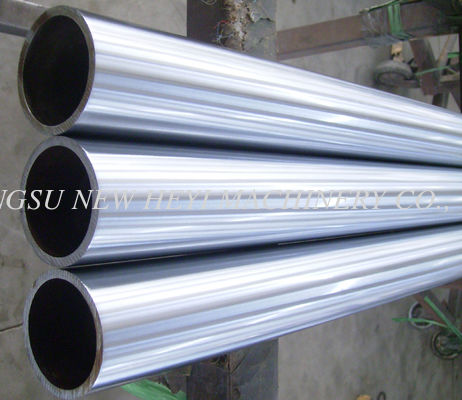

Seamless Hollow Metal Bar Chrome Plated Piston Rod And Chrome Plated Shaft

Seamless Hollow Metal Bar Chrome Plated Piston Rod And Chrome Plated Shaft

    • Seamless Hollow Metal Bar Chrome Plated Piston Rod And Chrome Plated Shaft
    • Seamless Hollow Metal Bar Chrome Plated Piston Rod And Chrome Plated Shaft
  • Seamless Hollow Metal Bar Chrome Plated Piston Rod And Chrome Plated Shaft

    Product Details:

    Place of Origin: China
    Brand Name: HY
    Certification: ISO9001:2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 tons
    Price: Negotiation
    Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    Delivery Time: 30days
    Payment Terms: L/C, T/T
    Supply Ability: 30tons a day
    Contact Now
    Detailed Product Description
    Name: Chrome Hollow Metal Rod Raw Material: Stainless Steel, Carbon Steel
    OD: 6mm - 1000mm Length: 1000mm - 8000mm
    Surface Condition: Hard Chrome Plating Chrome Thickness: 20-30 Micron

    Seamless Hollow Metal Bar Chrome Plated Piston Rod And Shaft


    seamless hollow rod

    Detailed Product Description

    1. Material: 42CrMo4, 40Cr, CK45,ST52,  20MnV6
    2. Complete manufactured equipment
    3. Tensile strength: Not less than 610 N/MM2
    4. Yield strength: Not less than 355 N/MM2
    5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened

    Detailed Description
    1.CHEMICAL COMPOSITION

    Material

    C%

    Mn%

    Si%

    S%

    P%

    V%

    Cr%

    Ck45

    0.42-0.50

    0.50-0.80

    0.04

    0.035

    0.035





    ST52

    0.22

    1.6

    0.55

    0.035

    0.04





    20MnV6

    0.16-0.22

    1.30-1.70

    0.10-0.50

    0.035

    0.035

    0.10-0.20



    42CrMo4

    0.38-0.45

    0.60-0.90

    0.15-0.40

    0.03

    0.03



    0.90-1.20

    40Cr

    0.37-0.45

    0.50-0.80

    0.17-0.37







    0.80-1.10


    2.MECHANCIAL PROPERTIES

    Material

    T.S  N/MM2

    Y.S  N/MM2

    E%(MIN)

    CHARPY

    CONDITION

    CK45

    610

    355

    15

    >41J

    NORMALIZE

    CK45

    800

    630

    20

    >41J

    Q + T

    ST52

    500

    355

    22



    NORMALIZE

    20MnV6

    750

    590

    12

    >40J

    NORMALIZE

    42CrMo4

    980

    850

    14

    >47J

    Q + T

    40Cr

    1000

    800

    10



    Q + T


    3. SUPPLY CONDITION
        Ground  and  chrome plated
    4. CHROME THICKNESS
         20 to 30 micron
    5. SURFACE ROUGHNESS
         Ra≤0.2 micron and  Rt≤2 micro
    6. TOLERANCES ON DIA
        ISO f7 on the diameter
    7.OVALITY
    Half of the tolerance ISO f7
    8. STRAIGHTNESS
       ≤0.2MM/M
    9. SURFACE HARDNESS
       850-1150HV (vickers 100g)
    10.COHESION
       No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
       in water)
    11 .POROSITY
         Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
    12 CORROSION RESISTANCE
         Test in natural salt spray according to ASTM B 117-72hours
         Results evaluation according to ISO 4540 RATING 7-10
    13. WELDABILITY
          Good
    14. PACKING
         Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    15. CERTIFICATE
         All certificate related with material heat treatment and plating is required

    Seamless Hollow Metal Bar Chrome Plated Piston Rod And Chrome Plated Shaft
