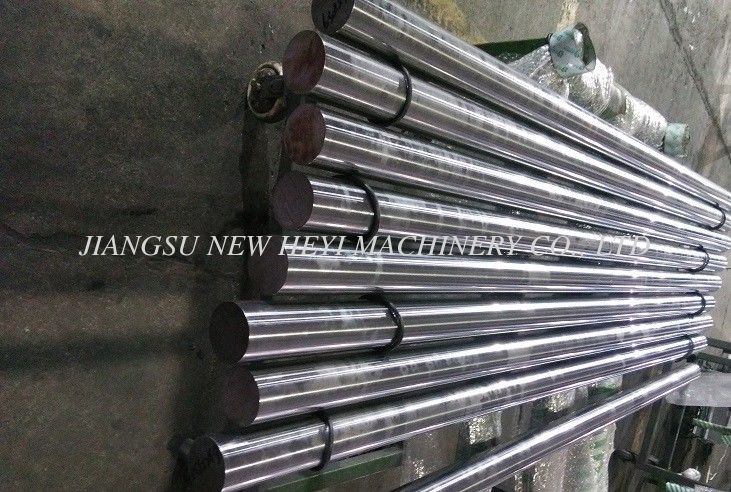

Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing

Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing

    • Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing
    • Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing
  • Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing

    Product Details:

    Place of Origin: China
    Brand Name: HY
    Certification: ISO9001:2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 tons
    Price: Negotiation
    Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    Delivery Time: 30days
    Payment Terms: T/T, L/C
    Supply Ability: 30tons a day
    Contact Now
    Detailed Product Description
    Name: Chrome Piston Rod Material: Micro Alloy Steel
    Supply Condition: Chrome Plating Chrome Thickness: 20 - 30 Micron
    Diameter: 35mm - 140mm Surface Roughness: Ra≤0.2micron And Rt≤2micro


    Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing



    Product Description
    1. ISO9001:2008, stable and uniform mechanical properties, the directly turning saves the logistics cost.
    2. Save manufacturing expenses and avoid waste in the tempering process.
    3. Shortened processing periods, enhance productivity and reduce the occupied capital
    4. The mechanical property is correspond to quenched and tempered 42CrMo4, 40Cr and CK45 or over
        them and very uniform on the whole cross section.
    5. It can be used for manufacturing injuection molding machine draglink, engineering machinery push
        rod and hydraulic prop with the feature that hardened and tempered steel mechanical property
        needless quenched and tempered process.
    6. Production no quenched and tempered process meets the requirements of environmental protection

    Detailed Description

    1. MATERIAL: HY4700, HY4520

    2. CHEMICAL COMPOSITION(%)

    Material

    C%

    Mn%

    Si%

    S%

    P%

    V%

    Ni

    Cr%

    Mo

    Cu

    HY4700

    0.38-0.45

    1.20 ~1.60

    0.30~0.50

    ≤0.035

    ≤0.020

    0.05~0.15

    ≤0.25

    0.10~0.20

    ≤0.15

    0.25

    HY4520

    0.40 ~0.48

    0.80 ~1.40

    0.15 ~0.35

    ≤0.035

    ≤0.035

    ≤0.15

    ≤0.25

    ≤0.25

    ≤0.15

    ≤0.25



    3. MECHANICAL PROPERTIES


    Material

    MECHANICAL PROPERTIES

    Surface hardness(HBW)

     Rm(MPa)

    Rel(MPa)

    A%

    Z%

    KU2(J)



    HY4700

    Φ35 - Φ100

    900 - 1100

    ≥650

    ≥16

    ≥35

    ≥39

    270-340

    >Φ100 - Φ140

    850 - 950

    ≥600

    ≥16

    ≥35

    ≥39

    270-340

    HY4520

    Φ40 - Φ100

    750 - 900

    ≥520

    ≥19

    ≥40

    ≥39

    230-290

    >Φ100~Φ140

    750 - 900

    ≥520

    ≥17

    ≥35

    ≥39

    230-290



















    4. SUPPLY CONDITION
        Ground  and  chrome plated
    5. CHROME THICKNESS
         20 to 30 micron
    6. TOLERANCES ON DIA
         ISO f7 on the diameter
    7. STRAIGHTNESS
       ≤0.2MM/M
    8.OVALITY
        Half of the tolerance ISO f7
    9 .SURFACE HARDNESS
         850-1150HV (vickers 100g)
    10. SURFACE ROUGHNESS
         Ra≤0.2 micron and  Rt≤2 micron
    11. COHESION

         No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

        and cooling in water)
    12. CORROSION RESISTANCE
         Test in natural salt spray according to ASTM B 117-120hours
         Results evaluation according to ISO 4540 RATING 7-10

    13. WELDABILITY
         Good

    14.POROSITY
          Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
    15. PACKING
         Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    16. CERTIFICATE
          All certificate related with material heat treatment and plating is required

    Length 1m - 8m Micro Alloyed Steel Rod For Mechanical Manufacturing
