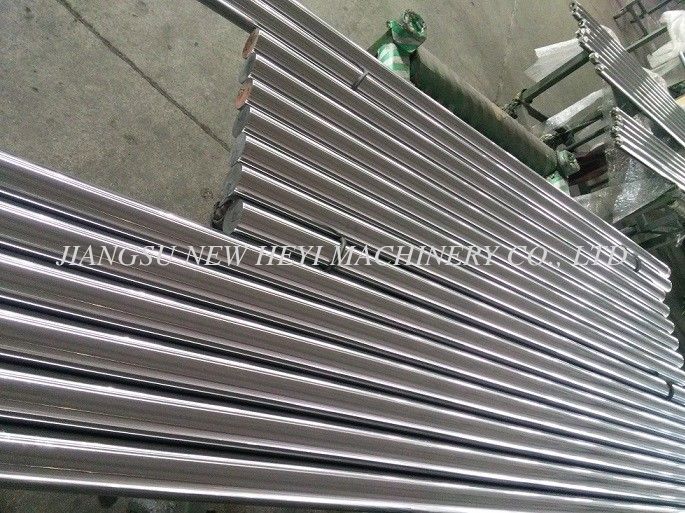

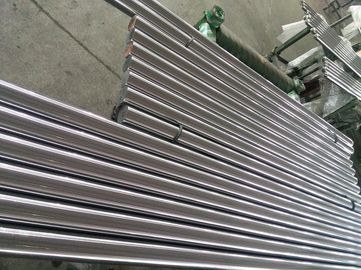

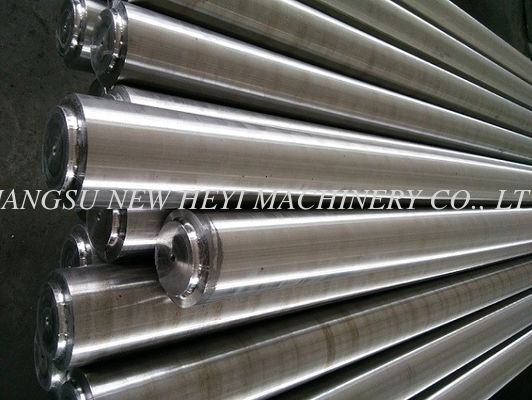

35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa

35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa

    • 35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa
    • 35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa
  • 35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa

    Product Details:

    Place of Origin: China
    Brand Name: HY
    Certification: ISO9001:2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 tons
    Price: Negotiation
    Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    Delivery Time: 30days
    Payment Terms: T/T, L/C
    Supply Ability: 30tons a day
    Contact Now
    Detailed Product Description
    Product Name: Micro Alloy Steel Rod Raw Material: Micro Alloy Steel
    Surface Condition: Chrome Plating Chrome Thickness: 20 - 30 Micron
    Tensile Strength: Not Less Than 750MPa Yield Strength: Not Less Than 520 Mpa


    35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa



    Product Description
    1. Turning performance: Turning performance is commensurate to 42CrMo4, 40Cr and CK45 or be
        superior to them.
    2. Hardness: Hardness is more uniform on the whole cross section than quenched and tempered
        42CrMo4, 40Cr and CK45
    3. Micro struction: Ferrite and pearlite with fine and uniform grain size.
    4. The steel directly directly turning saves the logistics cost
    5. Energy conservation: Production no quenched and tempered process greatly saves the energy
        consumption.
    6. Environments protection: Production no quenched and tempered process meets the requirements of
        environmental protection.

    Detailed Description

    1. MATERIAL: HY4700, HY4520

    2. CHEMICAL COMPOSITION(%)

    Material

    C%

    Mn%

    Si%

    S%

    P%

    V%

    Ni

    Cr%

    Mo

    Cu

    HY4700

    0.38-0.45

    1.20 ~1.60

    0.30~0.50

    ≤0.035

    ≤0.020

    0.05~0.15

    ≤0.25

    0.10~0.20

    ≤0.15

    0.25

    HY4520

    0.40 ~0.48

    0.80 ~1.40

    0.15 ~0.35

    ≤0.035

    ≤0.035

    ≤0.15

    ≤0.25

    ≤0.25

    ≤0.15

    ≤0.25



    3. MECHANICAL PROPERTIES


    Material

    MECHANICAL PROPERTIES

    Surface hardness(HBW)

     Rm(MPa)

    Rel(MPa)

    A%

    Z%

    KU2(J)



    HY4700

    Φ35 - Φ100

    900 - 1100

    ≥650

    ≥16

    ≥35

    ≥39

    270-340

    >Φ100 - Φ140

    850 - 950

    ≥600

    ≥16

    ≥35

    ≥39

    270-340

    HY4520

    Φ40 - Φ100

    750 - 900

    ≥520

    ≥19

    ≥40

    ≥39

    230-290

    >Φ100~Φ140

    750 - 900

    ≥520

    ≥17

    ≥35

    ≥39

    230-290



















    4. SUPPLY CONDITION
        Ground  and  chrome plated
    5. CHROME THICKNESS
         20 to 30 micron
    6. TOLERANCES ON DIA
         ISO f7 on the diameter
    7.OVALITY
        Half of the tolerance ISO f7
    8 .SURFACE HARDNESS
         850-1150HV (vickers 100g)
    9. SURFACE ROUGHNESS
         Ra≤0.2 micron and  Rt≤2 micron
    10. STRAIGHTNESS
       ≤0.2MM/M
    11. COHESION

         No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

        and cooling in water)
    12. WELDABILITY
         Good
    13. CORROSION RESISTANCE
         Test in natural salt spray according to ASTM B 117-120hours
         Results evaluation according to ISO 4540 RATING 7-10

    14 .POROSITY
          Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
    15. PACKING
         Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    16. CERTIFICATE
          All certificate related with material heat treatment and plating is required

    35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa
