ISO Micro Alloy Steel Hard Chrome Plated Rod Directly Turning

ISO Micro Alloy Steel Hard Chrome Plated Rod Directly Turning

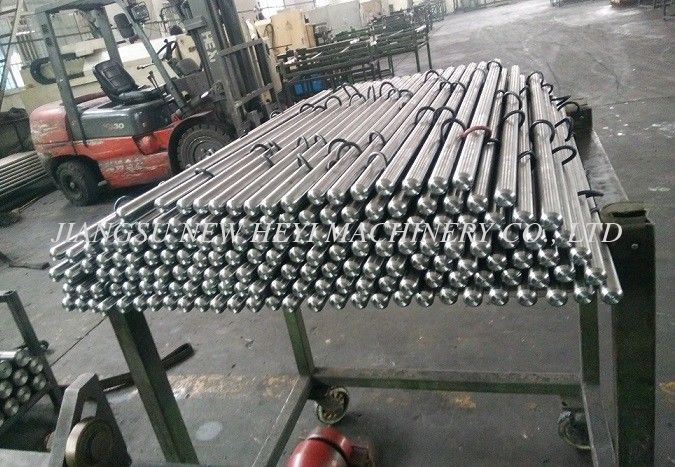

    • ISO Micro Alloy Steel Hard Chrome Plated Rod Directly Turning

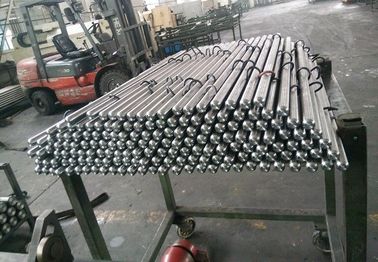

    • ISO Micro Alloy Steel Hard Chrome Plated Rod Directly Turning

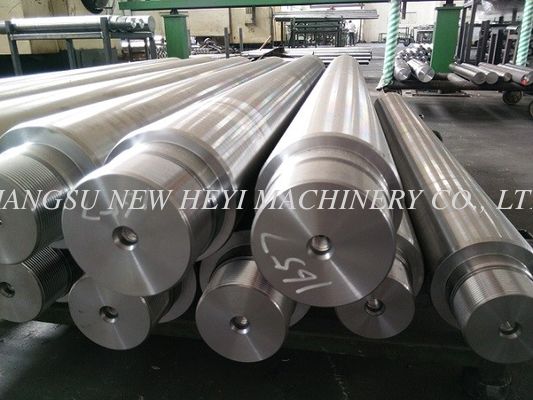

  • ISO Micro Alloy Steel Hard Chrome Plated Rod Directly Turning

    Product Details:

    Place of Origin: China
    Brand Name: HY
    Certification: ISO9001:2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 tons
    Price: Negotiation
    Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    Delivery Time: 30days
    Payment Terms: T/T, L/C
    Supply Ability: 30tons a day
    Contact Now
    Detailed Product Description
    Material: Micro Alloy Steel Name: Micro Alloy Steel Bar
    Surface Treatment: Chrome Plated Chrome Thickness: 20 - 30 Micron
    Tensile Strength: Not Less Than 750 Mpa Yield Strength: Not Less Than 520 Mpa


    ISO Micro Alloy Steel Hard Chrome Plated Rod Directly Turning


    Product Description
    1. The mechanical property of non-quenched and tempered steel products is correspond to quenched
        and tempered 42CrMo4, 40Cr and CK45 or over them and very uniform on the whole cross section.
    2. Turning performance: Turning performance is commensurate to 42CrMo4, 40Cr and CK45 or be
        superior to them.
    3. Hardness: Hardness is more uniform on the whole cross section than quenched and tempered
       42CrMo4, 40Cr and CK45
    4. Save manufacturing expenses and avoid waste in the tempering process.
    5. Shortened processing periods, enhance productivity and reduce the occupied capital.
    6. Low processing cost, needless quenched and tempered process and the second turning.


    Detailed Description

    1. MATERIAL: HY4700, HY4520

    2. CHEMICAL COMPOSITION(%)

    Material

    C%

    Mn%

    Si%

    S%

    P%

    V%

    Ni

    Cr%

    Mo

    Cu

    HY4700

    0.38-0.45

    1.20 ~1.60

    0.30~0.50

    ≤0.035

    ≤0.020

    0.05~0.15

    ≤0.25

    0.10~0.20

    ≤0.15

    0.25

    HY4520

    0.40 ~0.48

    0.80 ~1.40

    0.15 ~0.35

    ≤0.035

    ≤0.035

    ≤0.15

    ≤0.25

    ≤0.25

    ≤0.15

    ≤0.25



    3. MECHANICAL PROPERTIES


    Material

    MECHANICAL PROPERTIES

    Surface hardness(HBW)

     Rm(MPa)

    Rel(MPa)

    A%

    Z%

    KU2(J)



    HY4700

    Φ35 - Φ100

    900 - 1100

    ≥650

    ≥16

    ≥35

    ≥39

    270-340

    >Φ100 - Φ140

    850 - 950

    ≥600

    ≥16

    ≥35

    ≥39

    270-340

    HY4520

    Φ40 - Φ100

    750 - 900

    ≥520

    ≥19

    ≥40

    ≥39

    230-290

    >Φ100~Φ140

    750 - 900

    ≥520

    ≥17

    ≥35

    ≥39

    230-290



















    4. SUPPLY CONDITION
        Ground  and  chrome plated
    5. CHROME THICKNESS
         20 to 30 micron
    6. TOLERANCES ON DIA
         ISO f7 on the diameter
    7.OVALITY
        Half of the tolerance ISO f7
    8. SURFACE ROUGHNESS
         Ra≤0.2 micron and  Rt≤2 micron
    9. STRAIGHTNESS
       ≤0.2MM/M
    10 .SURFACE HARDNESS
         850-1150HV (vickers 100g)
    11. COHESION

         No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

        and cooling in water)
    12 .POROSITY
          Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
    13. WELDABILITY
         Good
    14. CORROSION RESISTANCE
         Test in natural salt spray according to ASTM B 117-120hours
         Results evaluation according to ISO 4540 RATING 7-10
    15. PACKING
         Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    16. CERTIFICATE
          All certificate related with material heat treatment and plating is required
