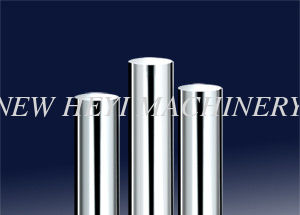

1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod

1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod

    • 1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod
    • 1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod
    • 1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod
    • 1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod
  • 1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod

    Product Details:

    Place of Origin: China
    Brand Name: HY
    Certification: ISO9001:2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 tons
    Price: Negotiation
    Packaging Details: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
    Delivery Time: 30days
    Payment Terms: T/T, L/C
    Supply Ability: 30tons a day
    Contact Now
    Detailed Product Description
    Material: Micro Alloy Steel Name: Chrome Piston Rod
    Surface Treatment: Chrome Plated Chrome Thickness: 20-30 Micron
    Surface Roughness: Ra0.2 Tolerance On Dia: F7



    1m - 8m Length Chrome Plated Piston Rod ISO Approved Hydraulic Cylinder Piston Rod





    Product Description


    1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr, HY4520, HY4700
    2. Category: Hard chrome piston rod

                        Quenched & Tempered (Q+T) rod

                        Induction hardened rod

                        Q+T induction hardened rod

                        Micro alloy steel piston rod

                        Wind power project piston rod

    3. Ground and chrome plated
    4. Tensile strength: Not less than 610 MPa
    5. Completed manufactured equipments, Advanced inspection apparatus





    Detailed Description





    1. CHEMICAL COMPOSITION(%)



    Material

    C%

    Mn%

    Si%

    S%

    P%

    V%

    Ni

    Cr%

    Mo

    Cu

    ck45

    0.42-0.50

    0.50-0.80

    0.17-0.37

    ≤0.035

    ≤0.035



    ≤0.25

    ≤0.25



    ≤0.25

    ST52

    ≤0.22

    ≤1.6

    ≤0.55

    ≤0.04

    ≤0.04

    0.02-0.15









    20MnV6

    0.17-0.24

    1.30-1.70

    0.10-0.50

    ≤0.035

    0.035

    0.10-0.20

    ≤0.30

    ≤0.30



    ≤0.30

    42CrMo

    0.38-0.45

    0.5-0.8

    0.17-0.37

    ≤0.035

    ≤0.035

    0.07-0.12

    ≤0.03

    0.90-1.20

    0.15-0.25

    ≤0.03

    40Cr

    0.37-0.45

    0.50-0.80

    0.17-0.37

    ≤0.035

    ≤0.035



    ≤0.3

    0.80-1.1



    ≤0.03

    HY4700

    0.38-0.45

    1.20 ~1.60

    0.30~0.50

    ≤0.035

    ≤0.020

    0.05~0.15

    ≤0.25

    0.10~0.20

    ≤0.15

    0.25

    HY4520

    0.40 ~0.48

    0.80 ~1.40

    0.15 ~0.35

    ≤0.035

    ≤0.035

    ≤0.15

    ≤0.25

    ≤0.25

    ≤0.15

    ≤0.25





    2.  MECHANICAL PROPERTIES



    Material

    T.S /    Rm(MPa)

    Y.S /     Rel(MPa)

     A%



    CHARPY



    CONDITION

    ck45

    610

    355

    16

    >41J

     Normalized

    ck45

    800

    540

    20

    >41J

      Q+T

    ST52

    500

    355

    22



     Normalized

    20MnV6

    750

    590

    12

    >40J

     Normalized

    42CrMo4

    980

    850

    14

    >47J

     Q+T

      40Cr

    1000

    800

    10



     Q+T





    3. MICRO ALLOY STEEL

    Material

    MECHANICAL PROPERTIES

    Surface hardness(HBW)

     Rm(MPa)

    Rel(MPa)

    A%

    Z%

    KU2(J)



    HY4700

    Φ35 - Φ100

    900 - 1100

    ≥650

    ≥16

    ≥35

    ≥39

    270-340

    >Φ100 - Φ140

    850 - 950

    ≥600

    ≥16

    ≥35

    ≥39

    270-340

    HY4520

    Φ40 - Φ100

    750 - 900

    ≥520

    ≥19

    ≥40

    ≥39

    230-290

    >Φ100~Φ140

    750 - 900

    ≥520

    ≥17

    ≥35

    ≥39

    230-290





















    4. SUPPLY CONDITION

        Ground  and  chrome plated

    5. CHROME THICKNESS

         20 to 30 micron

    6. SURFACE ROUGHNESS

         Ra≤0.2 micron and  Rt≤2 micron

    7. TOLERANCES ON DIA

         ISO f7 on the diameter

    8.OVALITY

        Half of the tolerance ISO f7

    9. STRAIGHTNESS

       ≤0.2MM/M

    10 .SURFACE HARDNESS

         850-1150HV (vickers 100g)

    11. COHESION

         No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

        and cooling in water)

    12 .POROSITY

          Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

    13. WELDABILITY

         Good

    14. CORROSION RESISTANCE

         Test in natural salt spray according to ASTM B 117-120hours

         Results evaluation according to ISO 4540 RATING 7-10

    15. PACKING

         Anti rust oil to be applied on material and each rod to be packed in paper sleeve

    16. CERTIFICATE

          All certificate related with material heat treatment and plating is required



    We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.The new chrome plating line is the first one in China and will be the only one in the next five years!



    1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod



    1m - 8m Length Chrome Plated Piston Rod , Hydraulic Cylinder Piston Rod
